Name: W11F-6X2000 Plate Roller
SKU: 1423
Availability: InStock

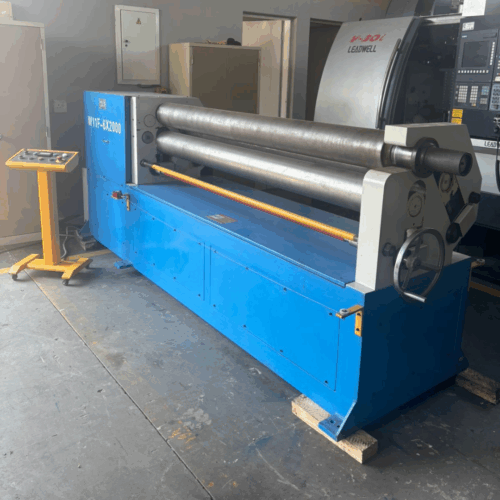

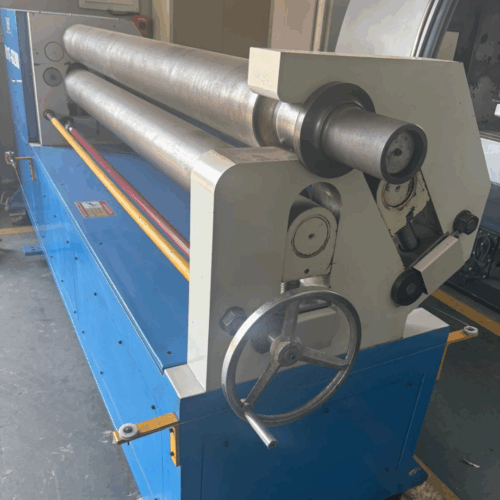

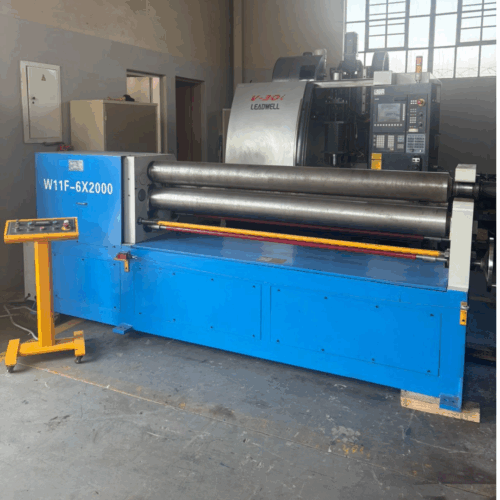

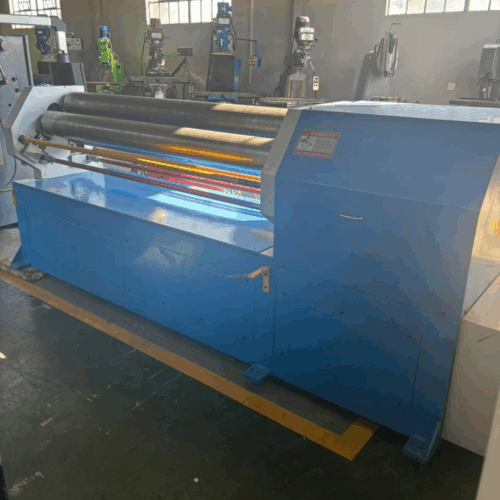

W11F-6X2000 Plate Roller

Rollers: Top ≈ 170 mm, Bottom ≈ 160 mm in diameter
Capacity: Bends up to 6 mm sheet thickness, up to 2 m wide
Structure: Symmetrical three-roller; top rolls in vertical axis, bottom rollers drive rotation
Performance: Rolling speed ~5 m/min, ~5.5 kW drive power
Size: Footprint ~3.65 m (L) × 0.82 m (W) × 1.05 m (H)

Parameter	Value
Max Plate Thickness	6 mm
Max Plate Width	2000 mm
Yield Limit (Strength)	245 MPa
Top Roller Diameter	~170 mm
Bottom Roller Diameter	~160 mm
Distance Between Bottom Rollers	~220 mm (or ~250 mm per variant)
Rolling Speed	~5 m/min
Motor Power	~5.5 kW (main motor), with some hydraulic options around 3 kW
Machine Dimensions	Approximately 3,650 mm × 820 mm × 1,050 mm (L × W × H)
