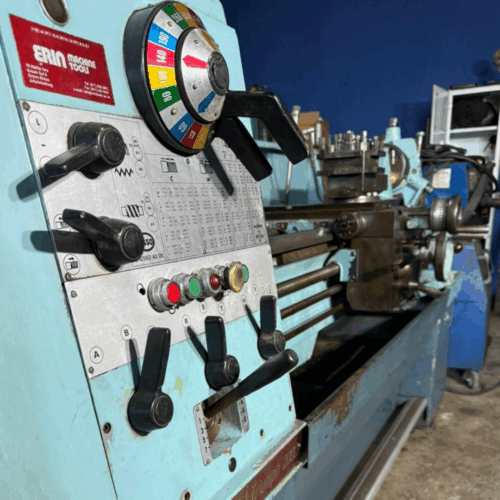

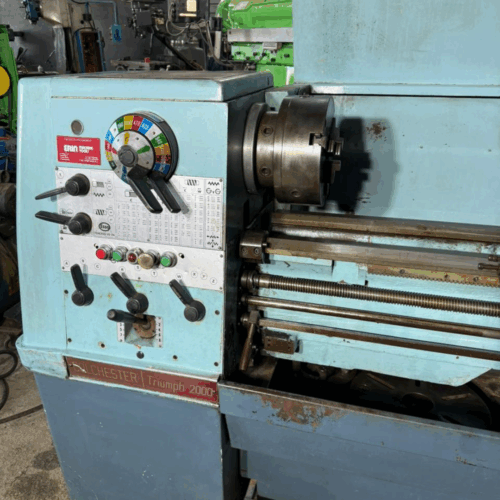

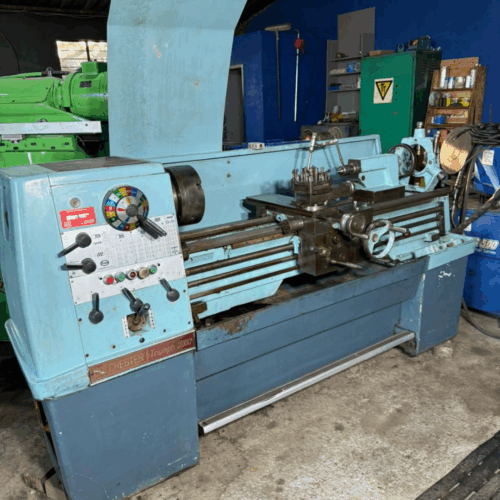

Colchester Triumph 2000 Center Lathe
Key Specifications
- Swing over bed: 390 mm (15”)
- Swing over cross slide: 240 mm (9.5”)
- Swing in gap: 580 mm (23”)
- Distance between centres: 1250 mm (50”)
- Centre height: 190 mm (7.5”)
- Spindle bore: 54 mm (2.125”)
- Spindle nose: D1-6 Camlock
- Spindle speeds: 16-step range from 25
to 2000 RPM
- Tailstock taper: MT4
- Threading capabilities:
- Metric: 0.2 – 14 mm pitch
- Whitworth: 2 – 72 TPI
- Module and Diametral pitches also supported
- Feeds:
- Longitudinal: 0.04 – 1.0 mm/rev
- Cross: 0.02 – 0.5 mm/rev
- Motor power: 5.5 kW (7.5 HP)
- Machine weight: Approximately 1170–1400 kg, depending on configuration
- Dimensions: Approximately 2.6 m (L) x 1.2 m (W) x 1.8 m (H)
Notable Features
- Fully geared headstock: Provides 16 spindle speeds in geometric progression, ensuring optimal torque across the range.
- High-precision spindle bearings: Enhance machining accuracy and longevity.
- Multi-plate clutches: Instant-acting forward and reverse clutches for efficient operation.
- Gap-bed design: Allows for larger diameter workpieces to be machined.
- Robust construction: Ensures stability and reduces vibration during heavy-duty operations.
