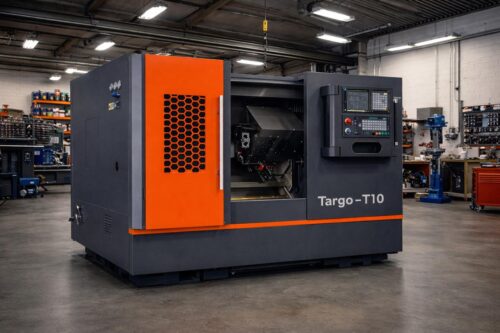

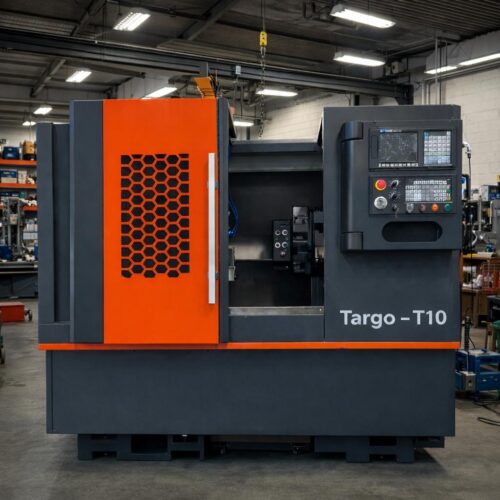

Targo T-10 CNC Lathe Machine

MACHINE CAPACITY

• Max Swing Over Bed: 560 mm

• Max Turning Diameter: 420 mm

• Max Turning Length: 500 mm

• Chuck Size: 10” 3-Jaw

• Bar Capacity: 66 mm

• Draw Tube Through Hole: 50 mm

---

AXIS TRAVEL & RAPID RATES

• X-Axis Travel: 230 mm

• Z-Axis Travel: 530 mm

• Rapid Traverse (X): 18,000 mm/min

• Rapid Traverse (Z): 18,000 mm/min

High-speed rapid movement ensures reduced cycle times and improved productivity.

---

SPINDLE SYSTEM

• Max Spindle Speed: 3000 RPM

• Speed Control: Stepless

• Spindle Nose: A2-6

• Spindle Motor Power: 11 kW

Powerful and stable spindle performance suitable for a wide range of turning applications.

---

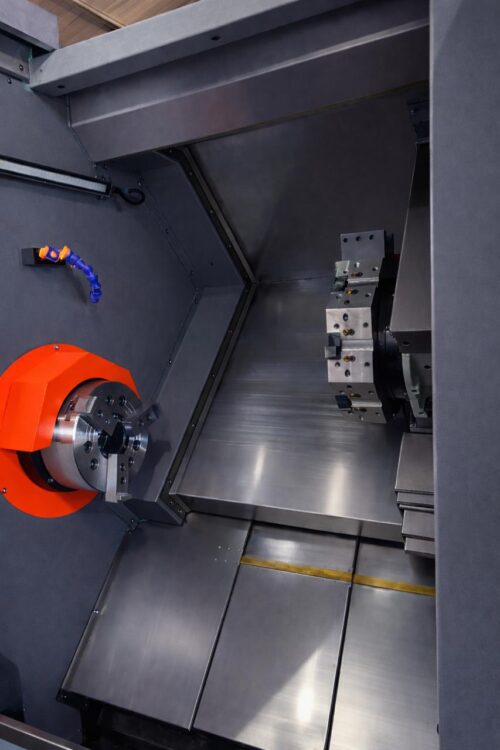

SERVO TURRET SYSTEM

• Turret Type: 8-Station Servo Turret

• Disc Diameter: 330 mm

• Square Tool Size: 25 mm

• Round Tool Size: 32 mm

• Tool Configuration: 2 Square + 2 Round Cutting Tools

Fast indexing and rigid tool holding ensure accuracy and efficiency.

---

MACHINE ACCURACY

Positioning Accuracy:

• X-Axis: 0.01 mm

• Z-Axis: 0.01 mm

Repeatability:

• X-Axis: 0.005 mm

• Z-Axis: 0.005 mm

Built for precision machining and consistent production output.

---

BED & STRUCTURE

• Bed Type: 30° Slant Bed

• Guideways: Linear Guide Rails

• X-Axis Rail Width: 35 mm

• Z-Axis Rail Width: 35 mm

• X Ball Screw: 3210

• Z Ball Screw: 4012

Heavy-duty construction for stability, reduced vibration, and long service life.

---

TAILSTOCK

• Type: Hydraulic

• Sleeve Diameter: 70 mm

• Sleeve Travel: 95 mm

• Sleeve Taper: MT5

• Tailstock Movement: Manual

---

CNC CONTROL OPTIONS

• Syntec Control

• Fanuc Control

Flexible control options to suit operational preferences and budgets.

---

WARRANTY

• 12 Months Mechanical Warranty

• 24 Months Warranty on Controls & Drives

---

WHY CHOOSE THE TARGO T-10?

✔ Rigid slant bed design
✔ High-speed rapid traverse
✔ Precision linear guideways
✔ Powerful 11kW spindle
✔ Servo 8-station turret
✔ Ideal for production turning environments
