King Rich Turret milling machine V3000
King Rich Turret milling machine V3000
King Rich Turret milling machine V3000
  1. King Rich Turret milling machine V3000
  2. King Rich Turret milling machine V3000
  3. King Rich Turret milling machine V3000

King Rich Turret milling machine V3000

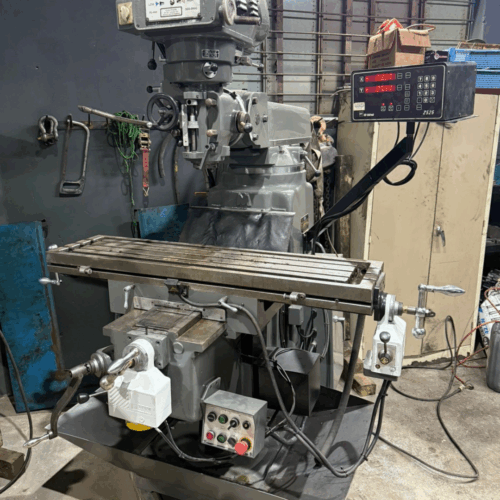

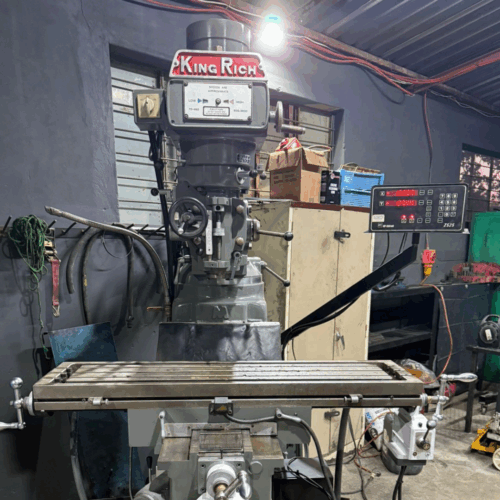

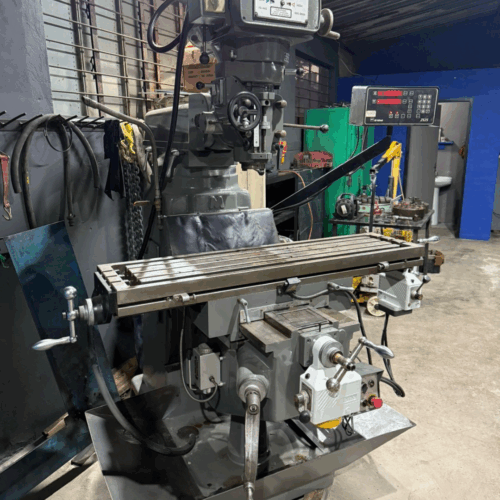

The King Rich V3000 Turret Milling Machine combines power, precision, and versatility, featuring a 5 HP spindle with speeds from 70–3600 RPM and an ISO 40 taper. Its large 1372 x 305 mm table supports up to 550 kg, with generous X/Y/Z travels and a fully swivelling, tilting head for complex machining. Built for durability and accuracy, it’s ideal for a wide range of milling applications.

Add to quote
Categories: , ,

King Rich Turret milling machine V3000

Key Specifications

  • Spindle Motor: 5 HP
  • Spindle Speed Range: 70–3600 RPM
  • Spindle Taper: ISO 40
  • Table Size: 1372 mm x 305 mm
  • T-Slots: 3 slots, each 15.9 mm wide
  • Travel (X/Y/Z): 755 mm / 400 mm / 406 mm
  • Ram Travel: 450 mm
  • Quill Travel: 127 mm
  • Quill Diameter: 105 mm
  • Quill Power Feeds: 0.038, 0.076, 0.152 mm/rev
  • Head Tilt: ±45° front-to-back, ±90° left-to-right
  • Swivel on Turret: 360°
  • Max Table Load: 550 kg
  • Machine Weight: 1700 kg
