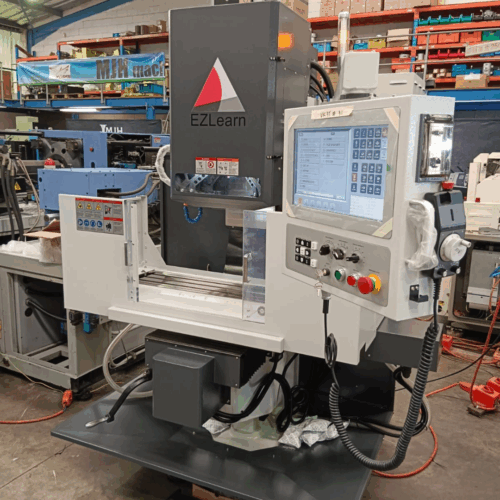

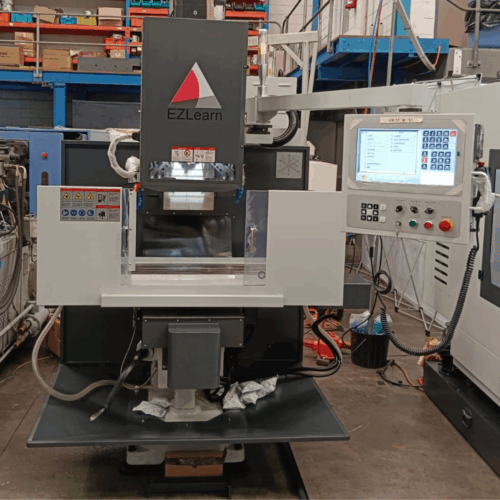

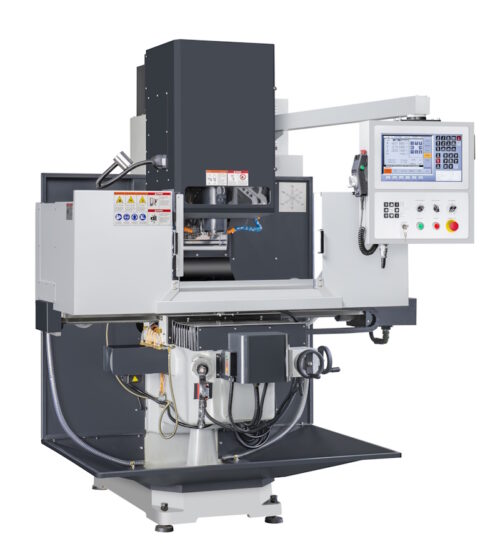

VKT-3T CNC Tool Room Knee Mill
Overview:
The VKT-3T is a versatile CNC knee mill designed for tool rooms, prototype work, and small batch production. It combines traditional manual usability with full CNC functionality — ideal for machinists looking for flexibility, precision, and reliability.
Technical Specifications
Axis Travel:
-
X / Y / Z: 700 x 310 x 270 mm (27.5″ x 12.2″ x 10.6″)
-
Knee Travel (Z): 350 mm (13.7″)
Spindle:
-
Taper: BT40 / CAT40
-
Speed Range: 50 – 6000 RPM
-
Drive Type: Direct Drive, Dual Winding
-
Motor Power: 5 HP (3.75 kW)
-
Rated Torque: 24 N·m (17.7 ft-lb)
-
Spindle Nose to Table: 100–400 mm (3.9–15.7″)
-
Tool to Column: 360 mm (14.2″)

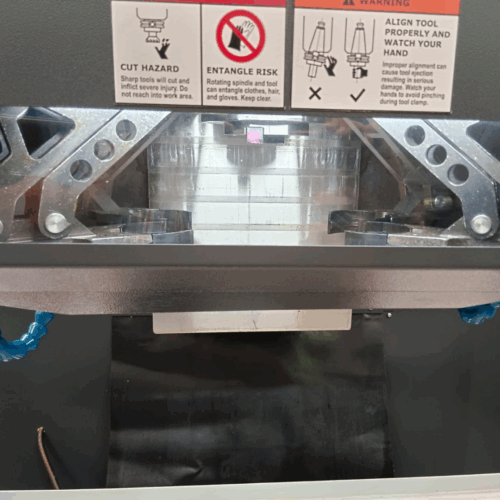

Automatic Tool Changer:
-
Type: “Spider” Type
-
Capacity: 4 Tools
Table:
-
Size: 1270 x 254 mm (50″ x 10″)
-
T-Slots: 3 x 65 mm x 16 mm
-
Max Load: 220 kg (480 lbs)
Feed & Motion:
-
Rapid Speed (X/Y/Z): 6000 mm/min (230 IPM)
-
Positioning Accuracy: ±0.020 mm (0.0008″)
-
Repeat Accuracy: ±0.010 mm (0.0004″)
Motors:
-
X / Y / Z: 0.85 / 0.85 / 0.85 kW Direct Drive

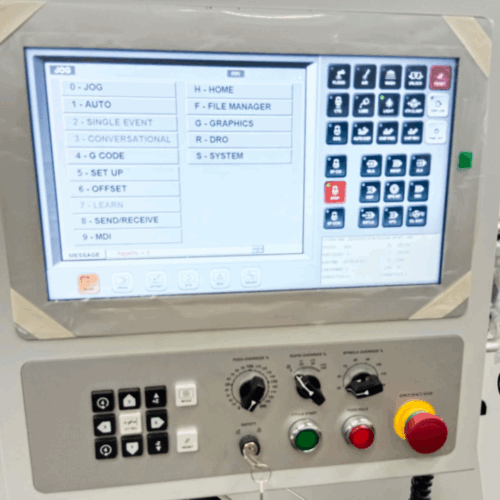

Control System (WinDelta CNC)
-
12.1” / 15.6” Touchscreen Display
-
16 GB Program Storage
-

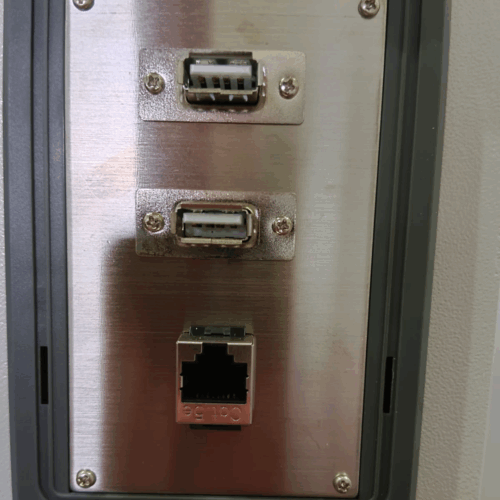

2x USB + 1x LAN
-
DRO + Semi-Auto Operation
-
ISO G-Code + Conversational Programming + DXF Import
-
Remote Monitoring, Diagnostics, and LAN/USB File Transfer
-
Dynamic 10,000 Block Look-Ahead
-
Optional 4th Axis Rotary Table
