CNMG190616-P3 BP6225 Inserts (sold as set of 10)
CNMG190616-P3 BP6225 Inserts (sold as set of 10)
  1. CNMG190616-P3 BP6225 Inserts (sold as set of 10)
  2. CNMG190616-P3 BP6225 Inserts (sold as set of 10)

CNMG190616-P3 BP6225 Inserts (sold as set of 10)

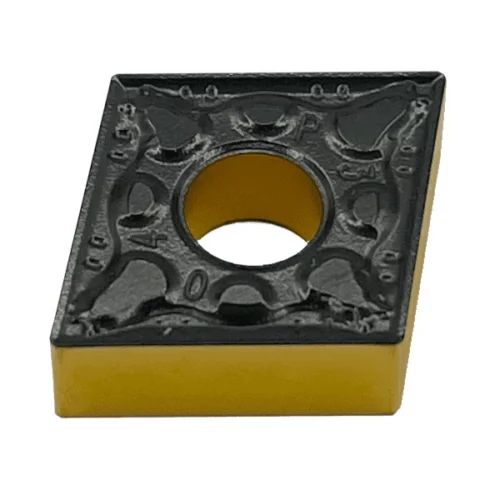

Negative insert with 80° rhombus shape and P3 chip breaker. Double-sided.

Best recommended for mild steel, but will also do for cast iron.

BP6225 Grade – The improved substrate functions with high stability and excellent resistance to breakage; the material has improved tool life and better resistance to plastic deformation by applying composite coating technique with upgraded CVD coating (MTCVD) and thick film-a-AL203.

BP6225 is suitable for continuous cutting at high speed and for interrupted cutting.

Add to quote
Categories: ,

Chip breaker P3:
• Best suited for semi-finishing of carbon steel and alloy steel.
• Suitable for processing workpieces with various dimensions and types.
• Maintaining tool life and excellent surface when machining at high speed and high feed.

Cutting speed vc(m/min): 120-300
Feed per revolution fn(mm/rev): 0.23-0.65
Cutting depth ap(mm): 1.0-7.5

Radius (R): 1.6mm

Please note: the product photo is for illustration purposes and may not reflect the actual nose radius or chipbreaker selected.
