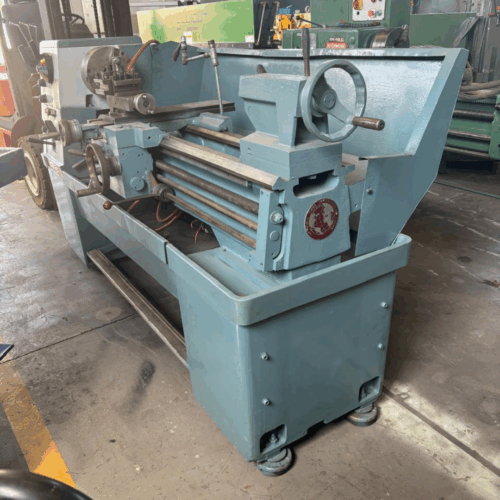

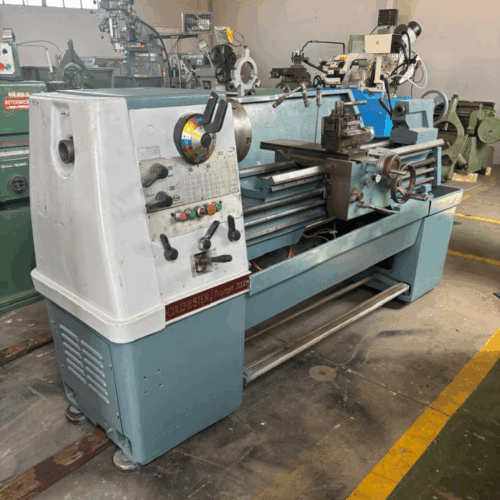

Colchester Triumph 2000 Lathe Machine

The Colchester Triumph 2000 is a robust precision centre lathe designed for heavy-duty turning and accurate machining. With a 7.5 HP motor, a wide speed range of 25–2000 rpm, and a generous 55 mm spindle bore, it offers versatility for both small and large workpieces. Featuring a swing of 380 mm over the bed, up to 1270 mm between centres, and a hardened, ground bed for durability, the Triumph 2000 is well-suited for toolrooms and production workshops alike. Its quick-change gearbox allows both metric and imperial threading, while the reliable clutch and foot brake system ensure safe, smooth operation.

Spec	Value
Centre height (top of bed to centre of spindle)	~ 7½ in (≈ 190-195 mm)
Bed width	~ 11 in (~ 280 mm)
Distance between centres	~ 50 in (≈ 1270 mm) for long bed
Maximum swing over bed	~ 15 in (≈ 380 mm)
Maximum swing over cross slide	~ 9-9.5 in (≈ 225-240 mm)
Swing in the gap (if gap-bed version)	~ 21-23 in (≈ 535-585 mm) depending on the setup.
Through spindle bore	~ 55.5 mm (≈ 2.1875 in)
Spindle nose	D1-6 Camlock
Spindle speeds	16 speeds, from ~ 25 RPM up to ~ 2000 RPM
Motor power	~ 7.5 HP (≈ 5.6 kW)
Tailstock taper	Morse No. 4 (MT4)
Threading / feed ranges	Very broad:
• Metric threads ~ 0.2 mm to 14.0 mm
• English threads ~ 2 to 72 TPI
• Sliding feed from ~ 0.001-0.040 in / rev, surfacing feed about half of that.
Approximate weight	Long-bed ~1,250-1,300 kg region
